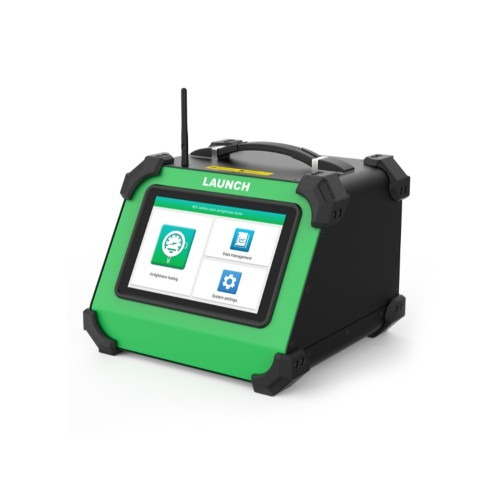

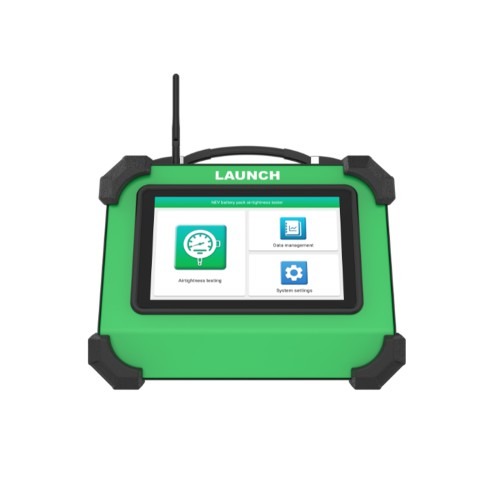

LAUNCH EVT511 EV Battery Airtightness Detector

Miejsce pochodzenia Chiny
Nazwa handlowa Launch
Numer modelu Uruchom detektor evt511 eV detektor bezsensowności
Minimalne zamówienie 1
Cena $1699
Szczegóły pakowania 7,0 kg
Czas dostawy 1 dzień pracy
Zasady płatności T/T, Western Union, MoneyGram
Możliwość Supply 1000

Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Nazwa modelu Uruchom detektor evt511 eV detektor bezsensowności Pochodzenie Chiny kontynentalne
Jakość Znakomity
Podkreślić

LAUNCH EVT511 Airtightness Detector

,

EV Battery Airtightness Detector

Zostaw wiadomość
opis produktu

Product Description

After the repair of the battery or modules inside the battery pack is completed, it is necessary to conduct a sealing test before installation. Without this test, if the sealing is inadequate and the vehicle drives on wet roads, it can easily lead to water ingress into the battery pack, causing internal circuit short circuits and ultimately accidents. Therefore, testing the sealing of the battery pack is a mandatory requirement.
LAUNCH EVT511EV Battery Airtightness Detector

After the repair of the battery or modules inside the battery pack is completed, it is necessary to conduct a sealing test before installation. Without this test, if the sealing is inadequate and the vehicle drives on wet roads, it can easily lead to water ingress into the battery pack, causing internal circuit short circuits and ultimately accidents. Therefore, testing the sealing of the battery pack is a mandatory requirement.

Product Features:

1. Presets battery pack parameters such as:
volume, pressure, stage testing time, leakage limit, etc.
2. High-sensitivity pressure sensing, high testing accuracy and stability.
3. Equipped with a pressure gauge to display real-time pressure curve during the process, making the testing process clear at a glance.
4. Supports multiple languages, including: Traditional Chinese, English, German, French, Japanese, Spanish, Portuguese, Italian, etc.

Low-pressure Airtightness Testing Theory Testing Theory

The compressed air is used as the medium to apply a certain pressure to the battery pack cavity, and a highly sensitive sensor is used to detect pressure changes to judge its sealing.

Product Specifications:

Power: 20W (Max)
Test Pressure Range: 0~30Kpa
Sensor Resolution: 1Pa
Test Accuracy: ±5pa
Communication Interface: RS485
Display: 10.1'' LCD screen
Data Storage Method: Internal storage or data upload to USB drive
Power Supply: AC90~264V, 50Hz/60Hz
Air Source Requirements: 0.1~1.0 Mpa dry compressed air
Intake Port/Test Port: φ6mm/φ6mm
Working Temperature/Hhumidity: -10~55°C/10%~90% @25°C
Dimension: 349*329*366.5 (mm)
Weight: 4.0kg
Package includes:

1pc x LAUNCH EVT511EV Battery Airtightness Detector
LAUNCH EVT511 EV Battery Airtightness Detector 0
